| Magnetic force: | 600 N vertical retractile force |
| Clamping device: | magnetic |
| Clamping force (vertical): | 600 N |

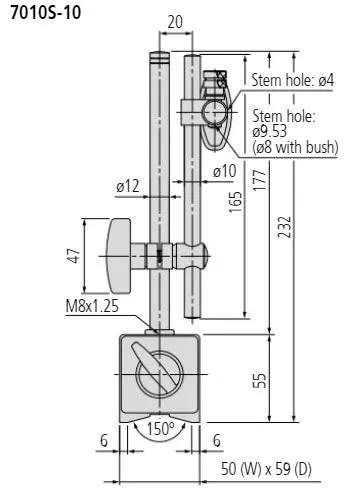

| Base size (LxWxH): | 59 x 50 x 55 mm |
| Total height: | 232 mm |
| Fine adjustment: | None |
| Stem hole ø: | 3/8" / 9.53 mm, 4 mm, 8 mm (with stem bush) |
| Working radius: | 165.0 mm |
| Delivered: | In a carton box with stem bush 02AZC291 |
| Thread Arm/Base: | M8 x 1.25 |
| Mass: | 1.38 kg |
