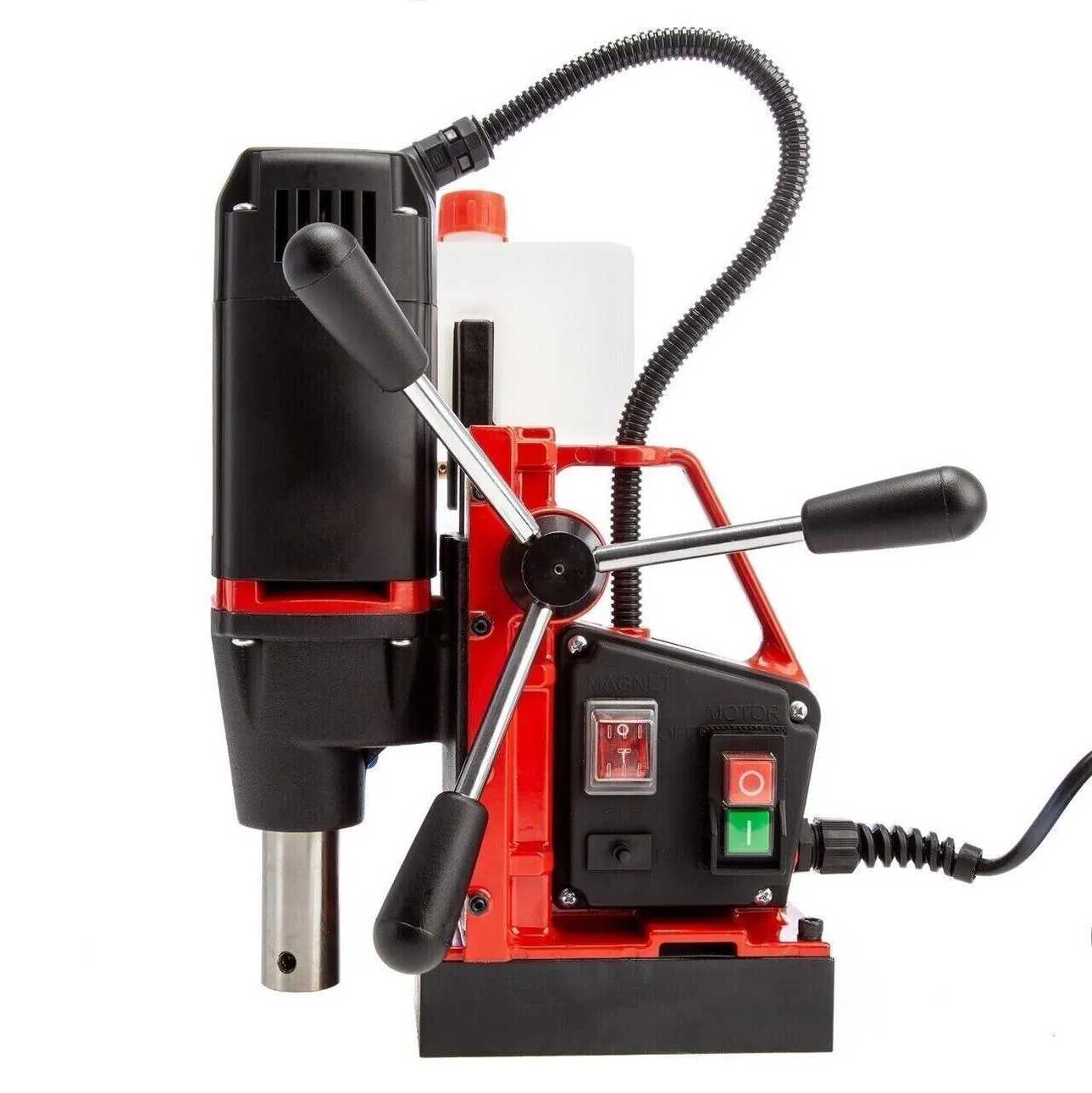

The RIX35 is a compact lightweight broach unit.  Capable of drilling up to 35.00 mm Ø with both short and long series cutters. The compact design and weight saving features makes this unit one of the smallest and lightest in its class. It is ideal for over-head work and tight spaces with a mini-mum useable height of just 39cm when using a standard reach cutter.

Supplied as standard with a cooling tank, guard, safety strap and transport case.

Specification:

• Core Drill Capacity 10—35.0 mm Ø
• Cutting Depth 50.0 mm
• Stroke 120.0 mm
• On Load Speed 400 rpm
• Power Consumption Eibenstock motor 1050W
• Available Voltages 110V or 240V
• Magnetic Adhesion 9000 N
• Magnet Footprint 80 x 160.0 mm
• Weight 9.5 KG
• Cable Length 3.0 M
